The design of Windslicer paddles is closely based on the subtle features seen in native paddles dating from the 1600's.

Some details of those examples and Windslicer paddles will be uploaded here

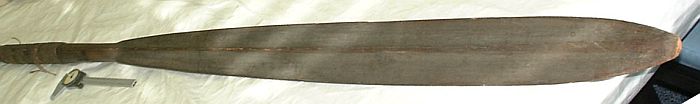

British museum native kayak paddle
This paddle in the British Museum collection, is, at 2.2 kg, the heaviest of those examined and both sides of both blades
are deeply fluted, perhaps to reduce the weight. It is made from two pieces of wood and has a neat scarf joint pinioned
with round, tapered pegs and bound by closetwine whipping.

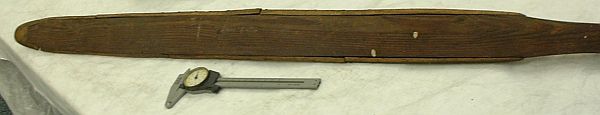

Bone edges and tips on this paddle protect against ice and the blade is not fluted which is a more common profile.

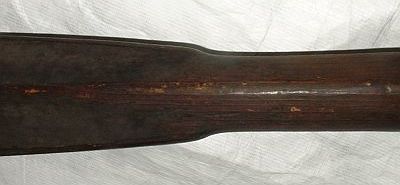

paddle shoulder showing blade edge ends
At the 'shoulder' where the blade meets the loom, the bone edges are not recessed on this paddle so that a sliding stoke would not be easy or smooth to perform. Even though the bone edges have been tapered at the ends they present an interruption to a sliding hand. When a sliding stroke is a priority, the transition from the loom to blade edge must be as smooth as possible.

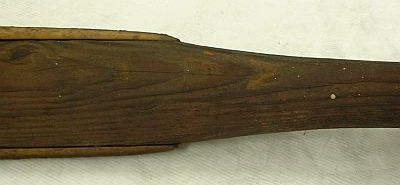

Paddle shoulder with bone edges extending to the loom
The normal hand position for a Greenland paddle partly covers the start of the blade so that in this example, where the bone edges extend to the loom, there is no obstacle and the transition is smooth. A sliding stroke would be easier with this paddle.

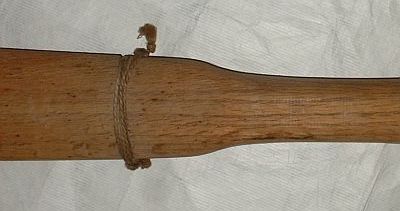

Plain wood paddle with no edge reinforcing but with a recessed twine set into the blade root to act as a water drip ring
A drip ring for water would make an interruption for the hands for easy sliding and in this example an attempt has been made to reconcile these conflicts. The blade is not edged  with any reinforcement and thin twine has been recessed in a groove running around the blade near its end. This paddle could be used in sliding stroke mode but would probably be uncomfortable for any length of time. Native paddles would have been more often used with a gloved hand. Notice that the twine has been knotted at the blade edges to induce the water to drip off just before the hand position.

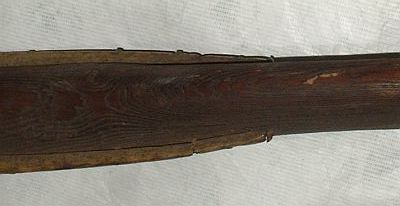

defined 'shoulder' with a prounced step at the end of the loom
Where the end of the blade is a prounced step, as in this example, it provides an easy-to-feel place on the paddle for the user to ensure their grip position without having to check visually. It is, at the same time, a smooth step, so that a sliding stroke remains practical.

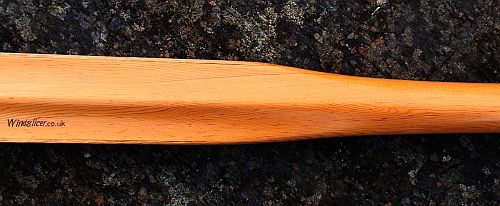

'Shoulder' of Windslicer paddle
Standard Windslicer paddles have a smoothed 'shoulder' with oak edges to the blades.

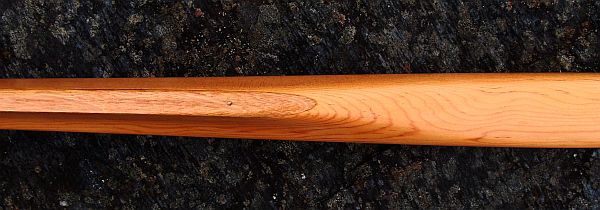

Edge view of Windslicer paddle 'shoulder'
Edge view of Windslicer paddle 'shoulder'. The oak edges are glued with epoxy resin and pinned with bamboo.
